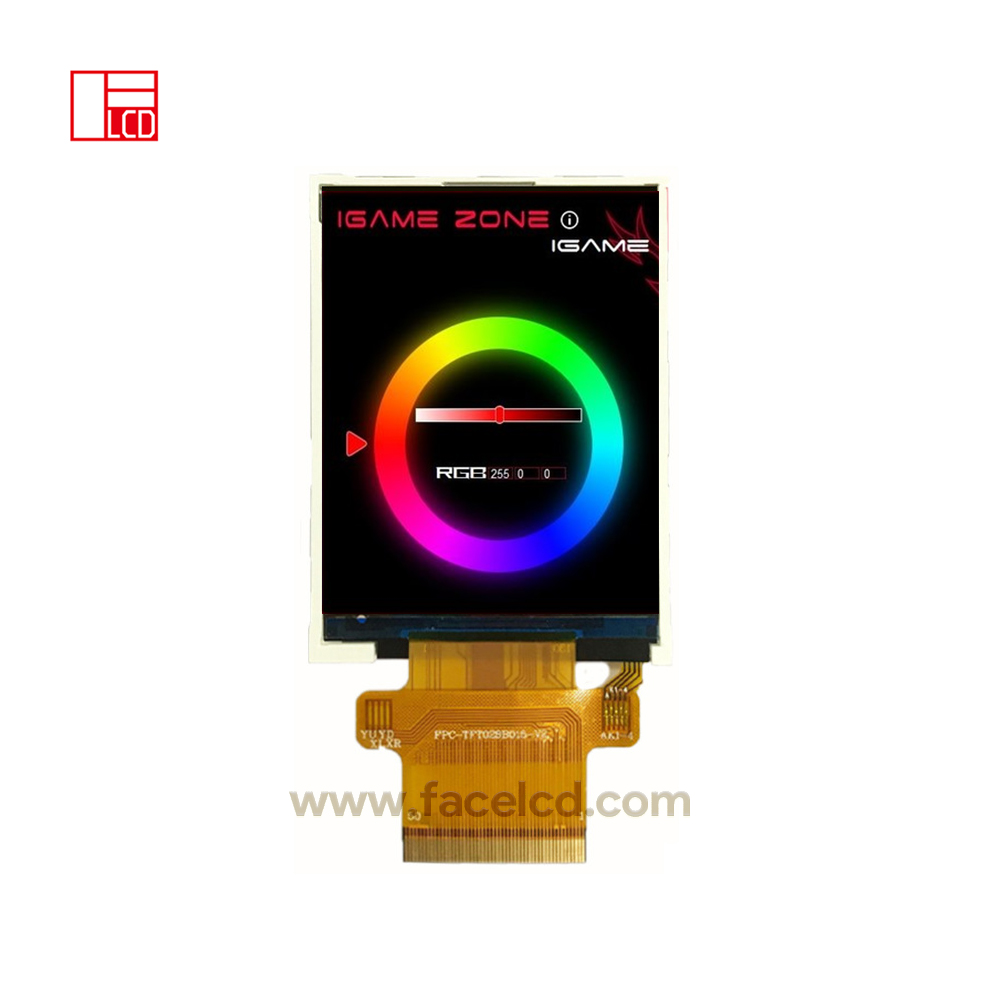

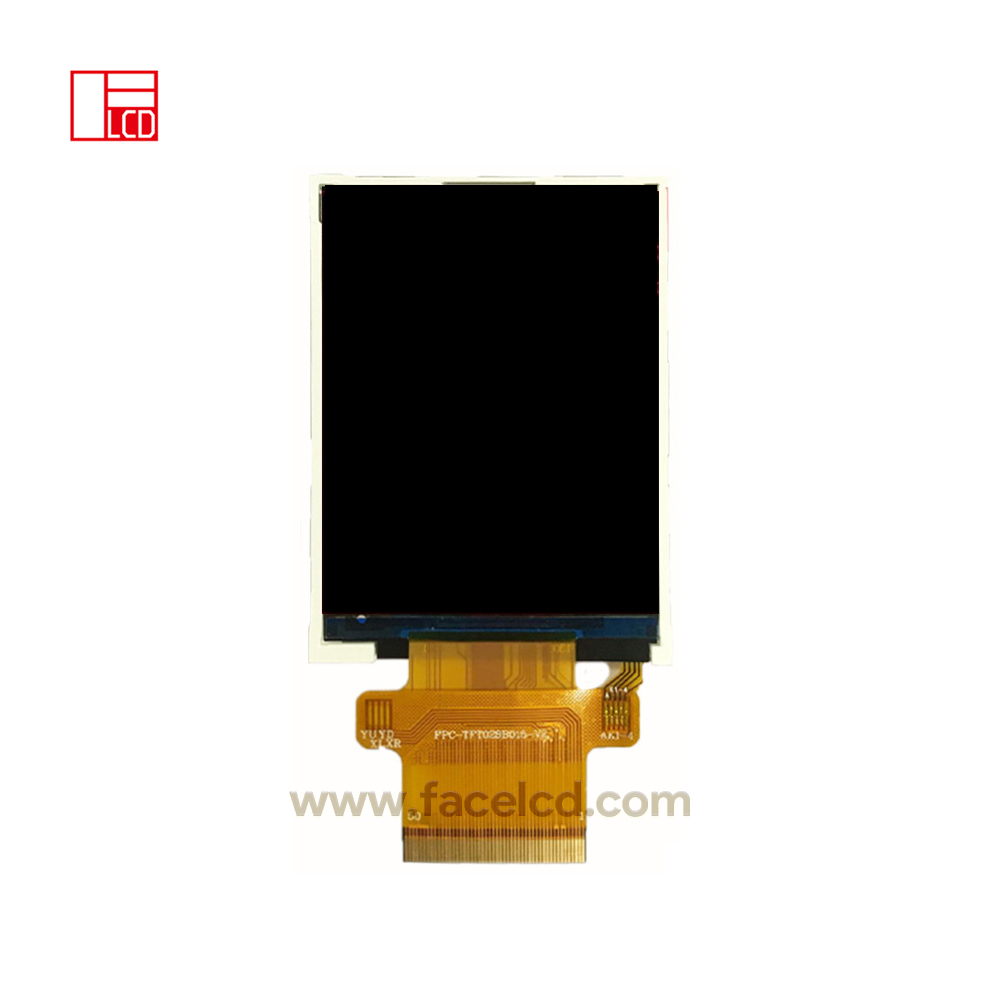

2.8inch 240X320 IPS TFT LCD Display with SPI or MCU
2.8inch 240X320 IPS TFT LCD Display with SPI or MCU
2.8inch 240X320 IPS TFT LCD Display with SPI or MCU

2.8inch 240X320 IPS TFT LCD Display with SPI or MCU

Quick info

  • Model Number:FB028CLS302-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:3:4
  • Resolution:240X320
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 2.8 inch
 Model Number FB028CLS302-A
 Panel Type TFT-LCD
 Aspect Ratio 3:4
 Resolution 240X320
 Pixel Format RGB Vertical Stripe
 Active Area 43.2(W)X57.6 (H) mm
 Bezel Opening 44.2（W) X58.9 (H) mm
 Outline Dimension 47.2(H)X66.2(V)X1.85(D)mm
 Treatment Antigare
 View Angel 80/80/80/80
 Support Color 262K
 Luminance 350 cd/㎡
 Interface Type SPI/MCU
 Operation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 3.2V
 Current for LED Backlight 60mA
 Application Handheld&PDA, Industrial, Healthcare
Medical, Smart Home, POS, PDA, etc
 Sample Leadtime 7-10days
