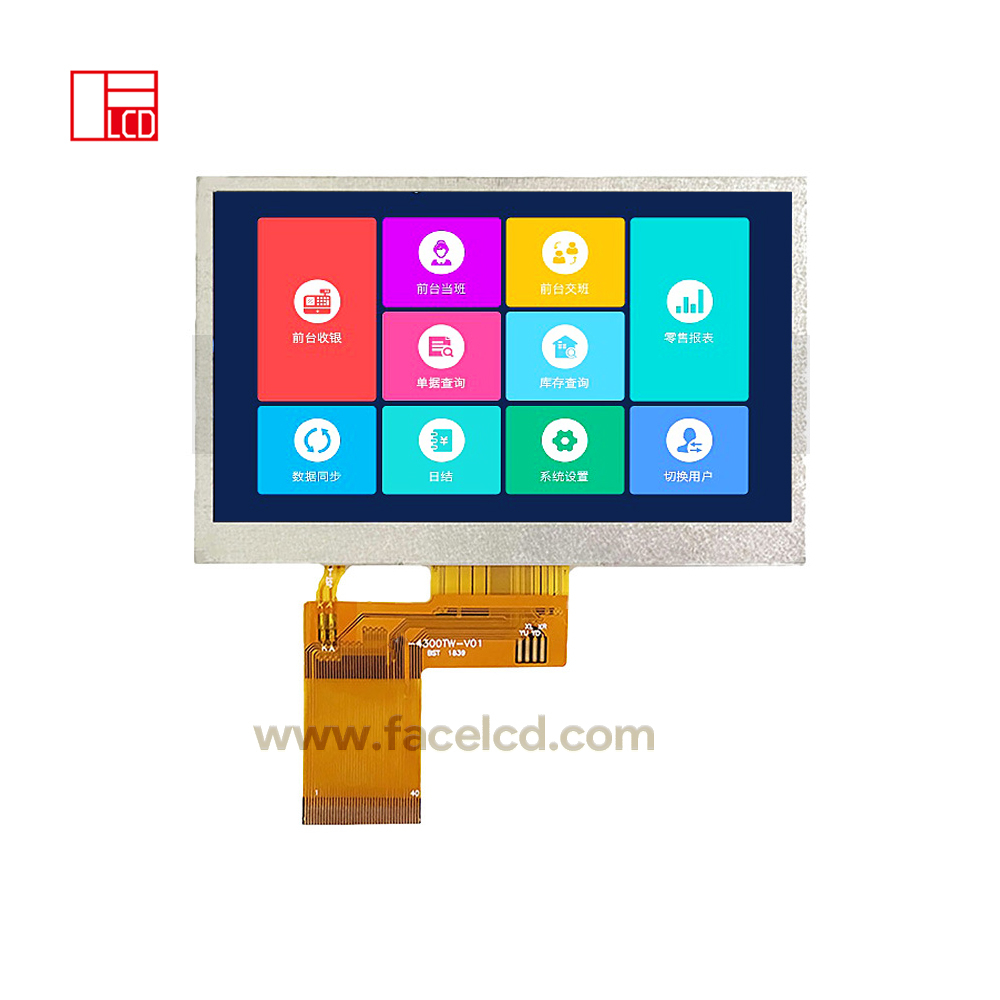

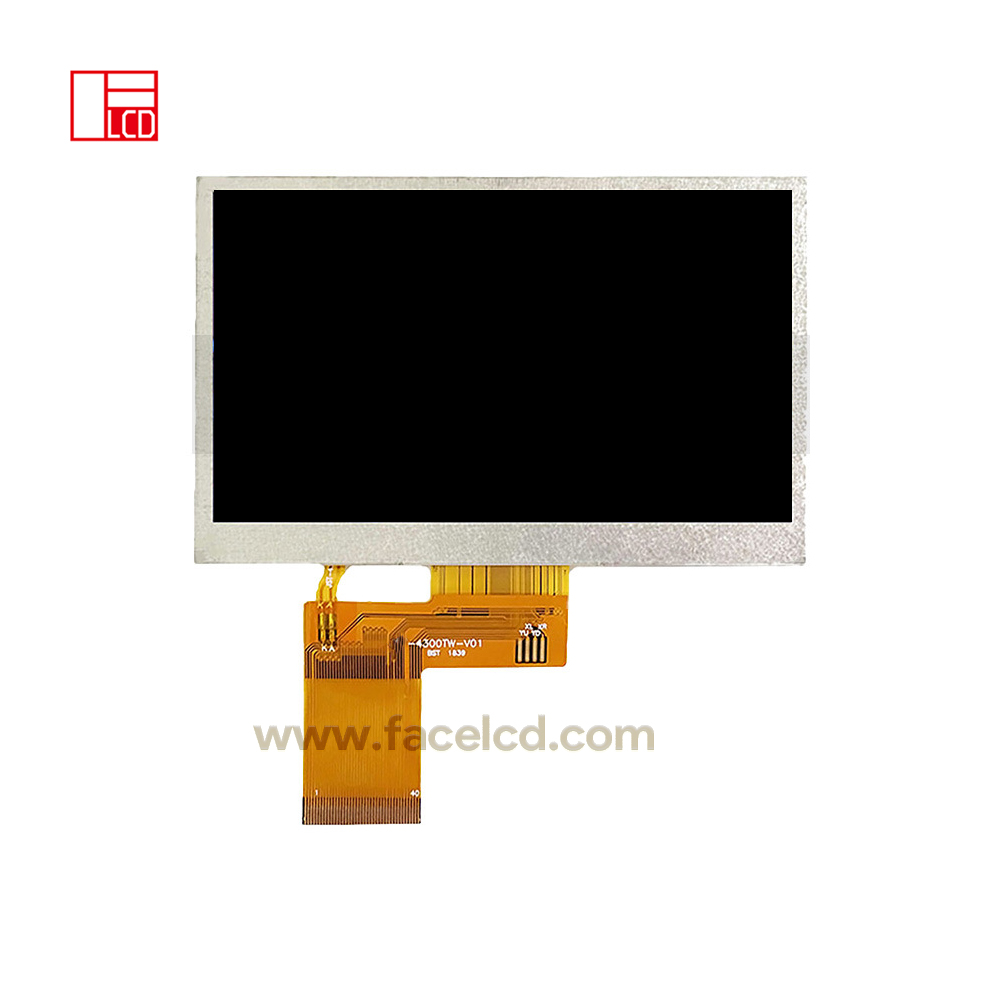

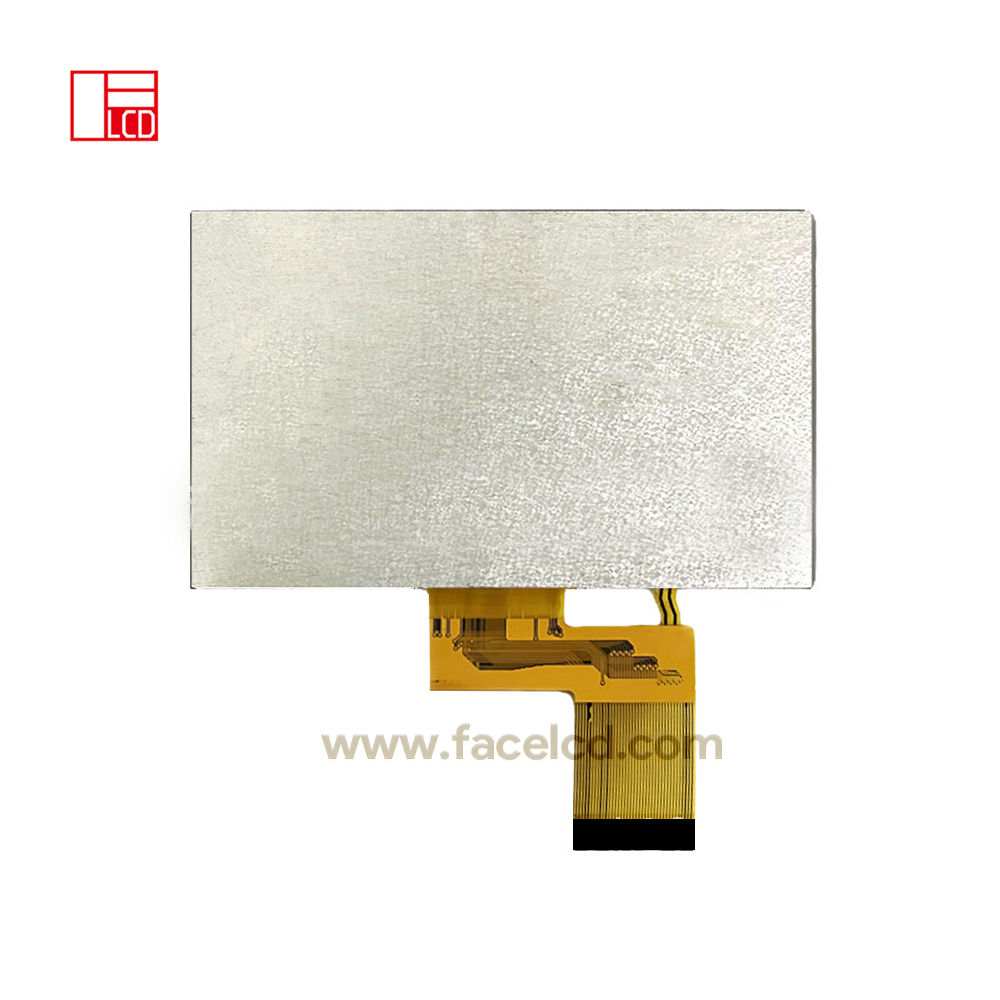

4.3-Inch 800×480 IPS TFT LCD Display – RGB 40Pin, Anti-Glare, 400nits
4.3-Inch 800×480 IPS TFT LCD Display – RGB 40Pin, Anti-Glare, 400nits
4.3-Inch 800×480 IPS TFT LCD Display – RGB 40Pin, Anti-Glare, 400nits
4.3-Inch 800×480 IPS TFT LCD Display – RGB 40Pin, Anti-Glare, 400nits

4.3-Inch 800×480 IPS TFT LCD Display – RGB 40Pin, Anti-Glare, 400nits

Quick info

  • Model Number:FB043ESG410-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:9
  • Resolution:800X480
DetailsAdditional Information

Product Description

 Panel Size 4.3inch
 Model Number FB043ESG410-A
 Panel Type TFT-LCD
 Aspect Ratio 16:9
 Resolution 800X480
 Pixel Format RGB
 Active Area 95.04(W)X53.86(H) mm
 Bezel Opening 97.34(W)X56.46(H) mm
 Outline Dimension 105.50(W)X67.20(H)X3.00(D)mm
 Treatment Anti-gare
 View Angel 80/80/80/80
 Support Color 50% NTSC
 Luminance 400 cd/㎡
 Interface Type TTL/RGB 40pin
 Operatation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 15V
 Current for LED Backlight 40mA
 Application Industrial, Medical, PDA, Healthcare Smart Home, Euipment, etc
 Sample Leadtime 7-10days
