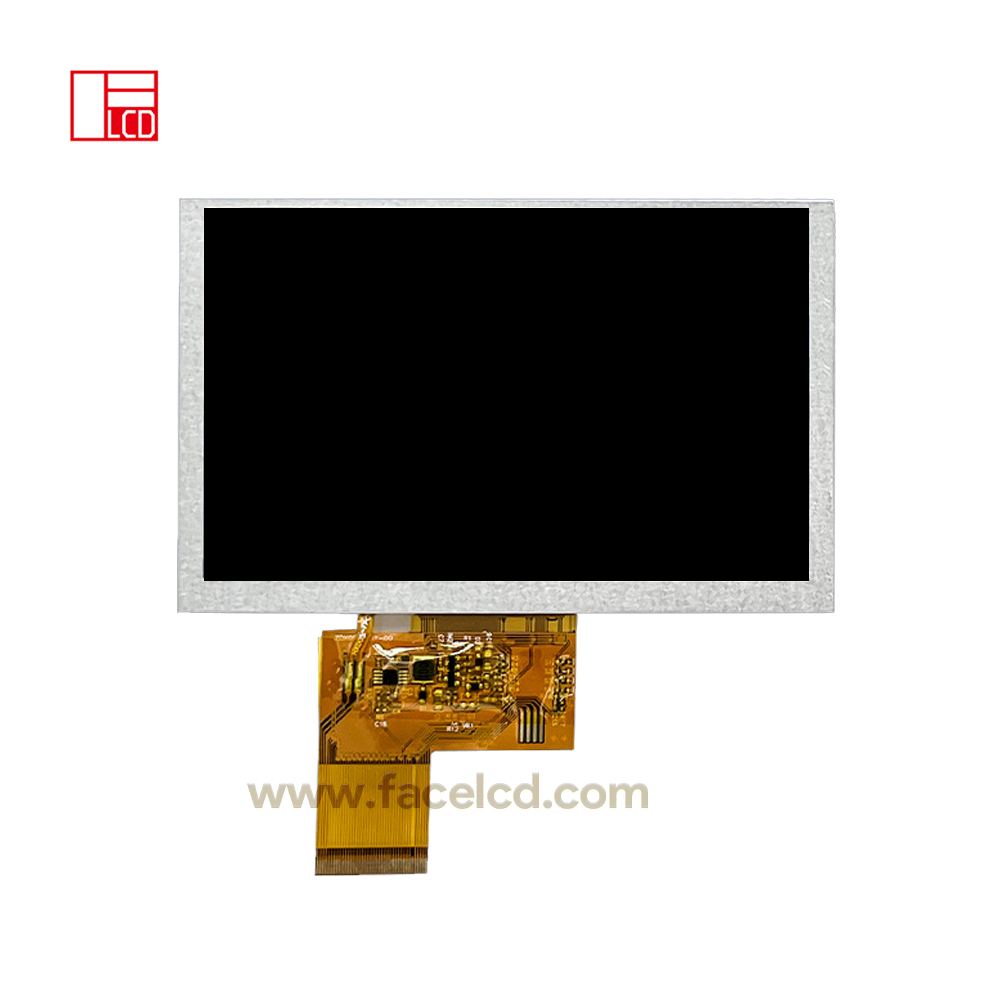

5inch 800X480 IPS TFT LCD Display with RGB
5inch 800X480 IPS TFT LCD Display with RGB
5inch 800X480 IPS TFT LCD Display with RGB

5inch 800X480 IPS TFT LCD Display with RGB

Quick info

  • Model Number:FB050ESG410-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:9
  • Resolution:800X480
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 5inch
 Model Number FB050ESG410-A
 Panel Type TFT-LCD
 Aspect Ratio 16:9
 Resolution 800X480
 Pixel Format RGB-Stripe
 Active Area 108(W)X64.80(H) mm
 Bezel Opening 110.30(W)X66.80(H) mm
 Outline Dimension 120.8(W) X75.95(H) X2.9(D) mm
 Treatment Anti-glare
 View Angel 80/80/80/80
 Support Color 16.7M
 Luminance 600 cd/㎡
 Interface Type TTL/RGB 40pin
 Operatation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 18V
 Current for LED Backlight 60mA
 Application Industrial, Medical, PDA, Healthcare Smart Home, Euipment, etc
 Sample Leadtime 7-10days
