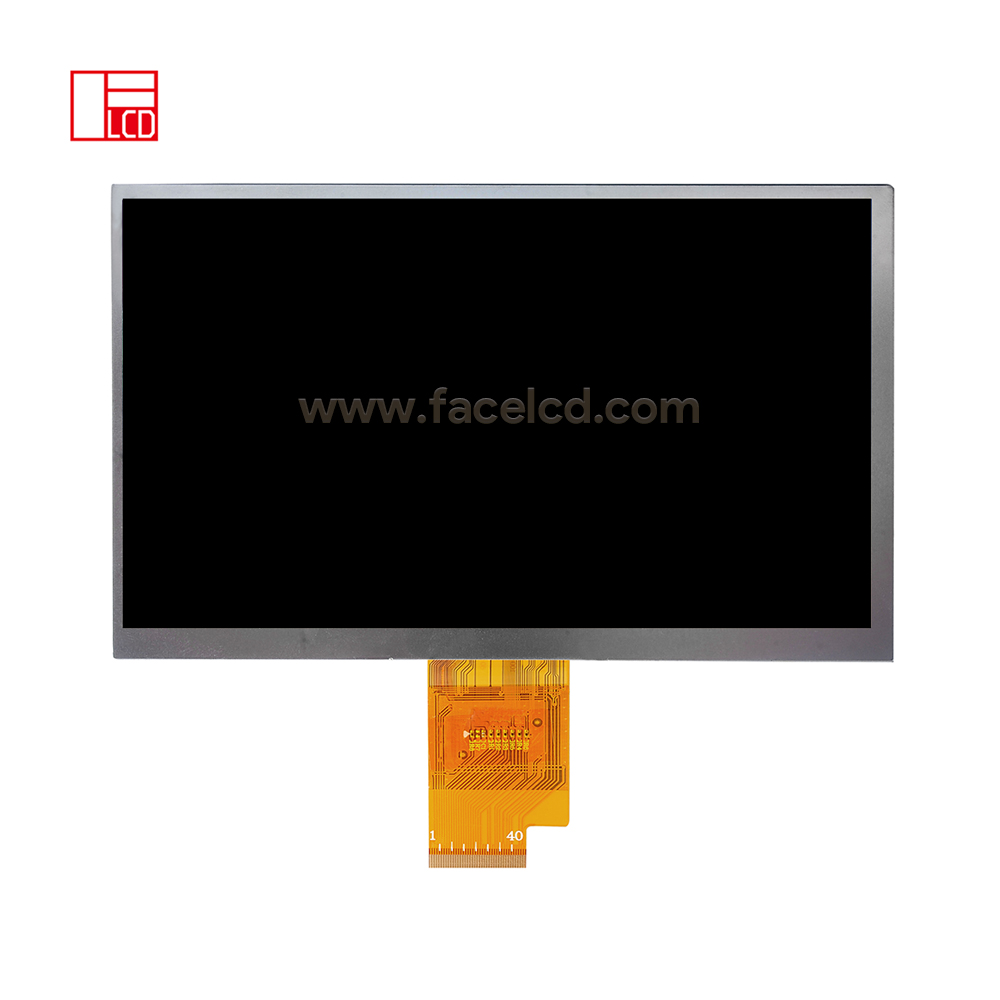

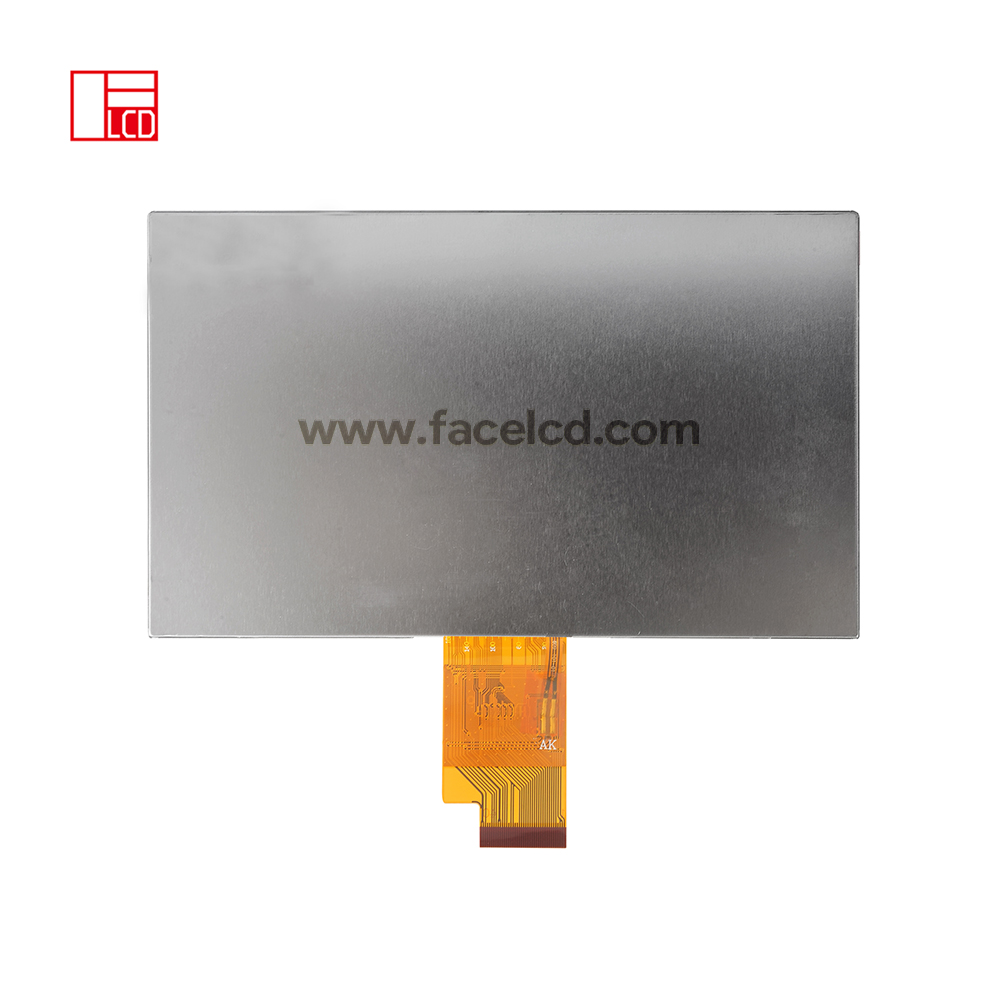

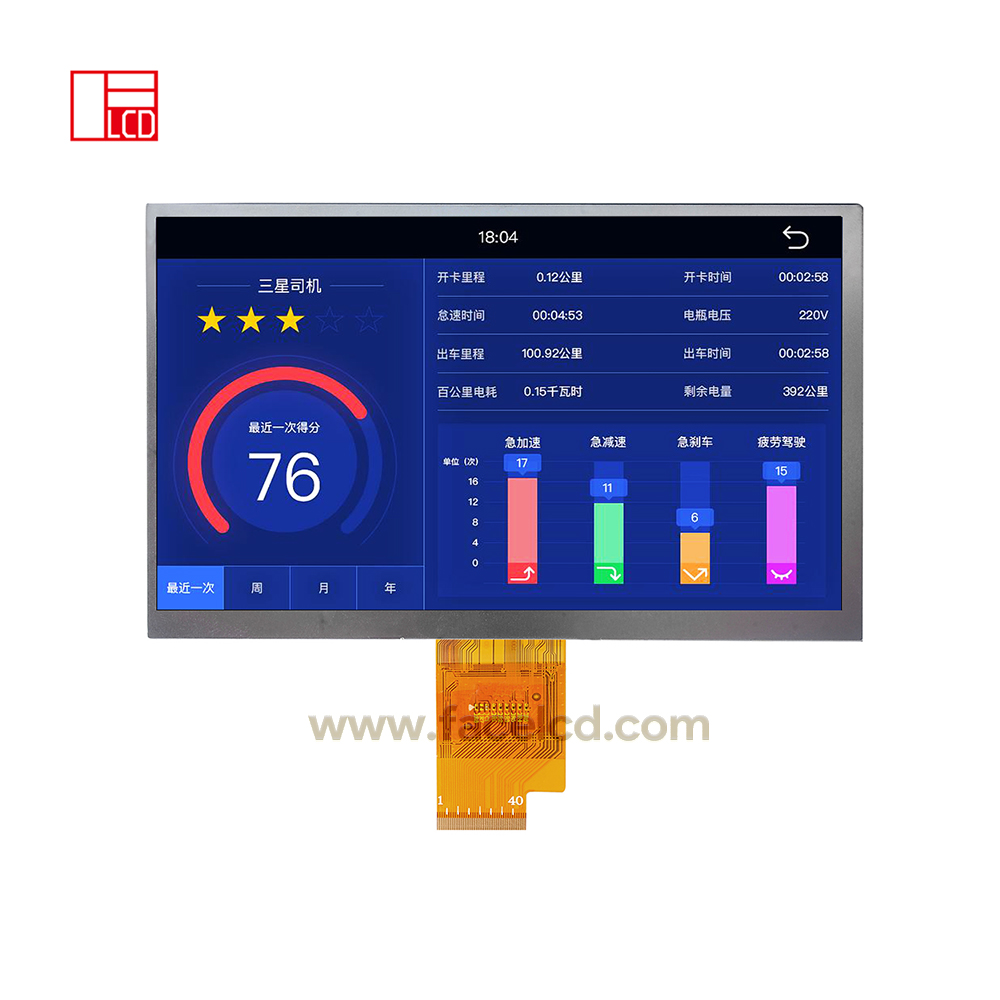

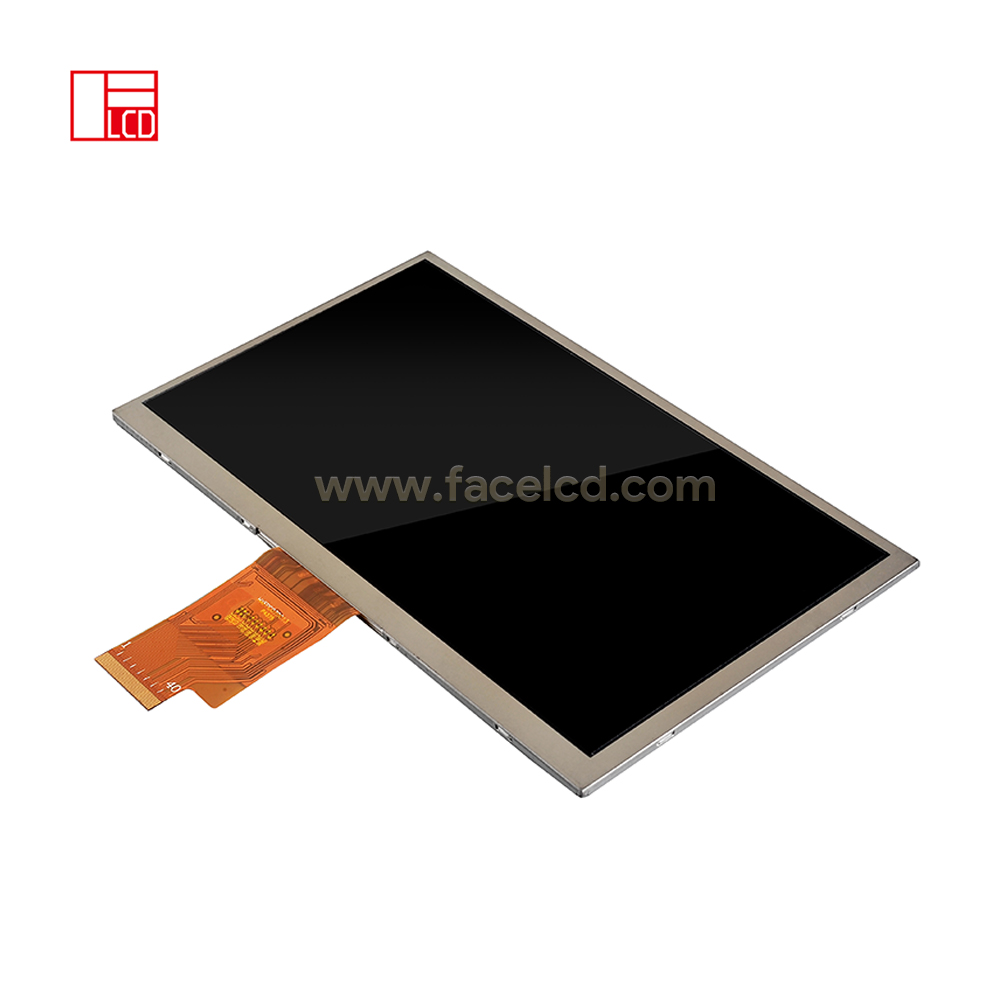

7inch 1024X600 IPS TFT LCD Display with LVDS
7inch 1024X600 IPS TFT LCD Display with LVDS
7inch 1024X600 IPS TFT LCD Display with LVDS
7inch 1024X600 IPS TFT LCD Display with LVDS
7inch 1024X600 IPS TFT LCD Display with LVDS

7inch 1024X600 IPS TFT LCD Display with LVDS

Quick info

  • Model Number:FB070CFG401-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:9
  • Resolution:800X480
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 7inch
 Model Number FB070CFG401-A
 Panel Type TFT-LCD
 Aspect Ratio 16:9
 Resolution 800X480
 Pixel Format RGB-stripe
 Active Area 154.08(W)X 85.92(H) mm
 Bezel Opening 156.9(W)X89.58(H) mm
 Outline Dimension 165(W) X100(H) X5.7(D) mm
 Treatment Anti-Glare
 View Angel 70/70/60/70
 Support Color 16.7M
 Luminance 450 cd/㎡
 Interface Type RGB 50pin
 Operatation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 9V
 Current for LED Backlight 160mA
 Application Industrial, Medical, Automotive, Smart Home, Euipment, etc
 Sample Leadtime 5-7days
