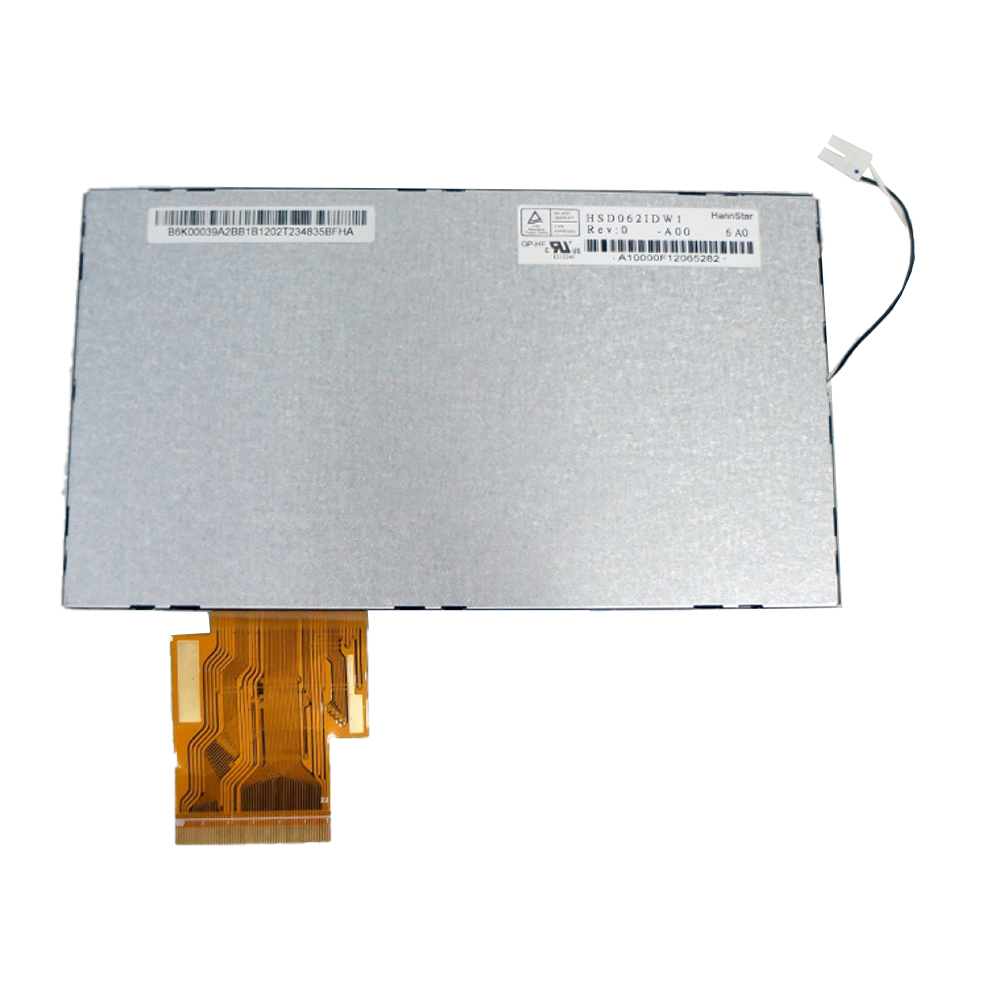

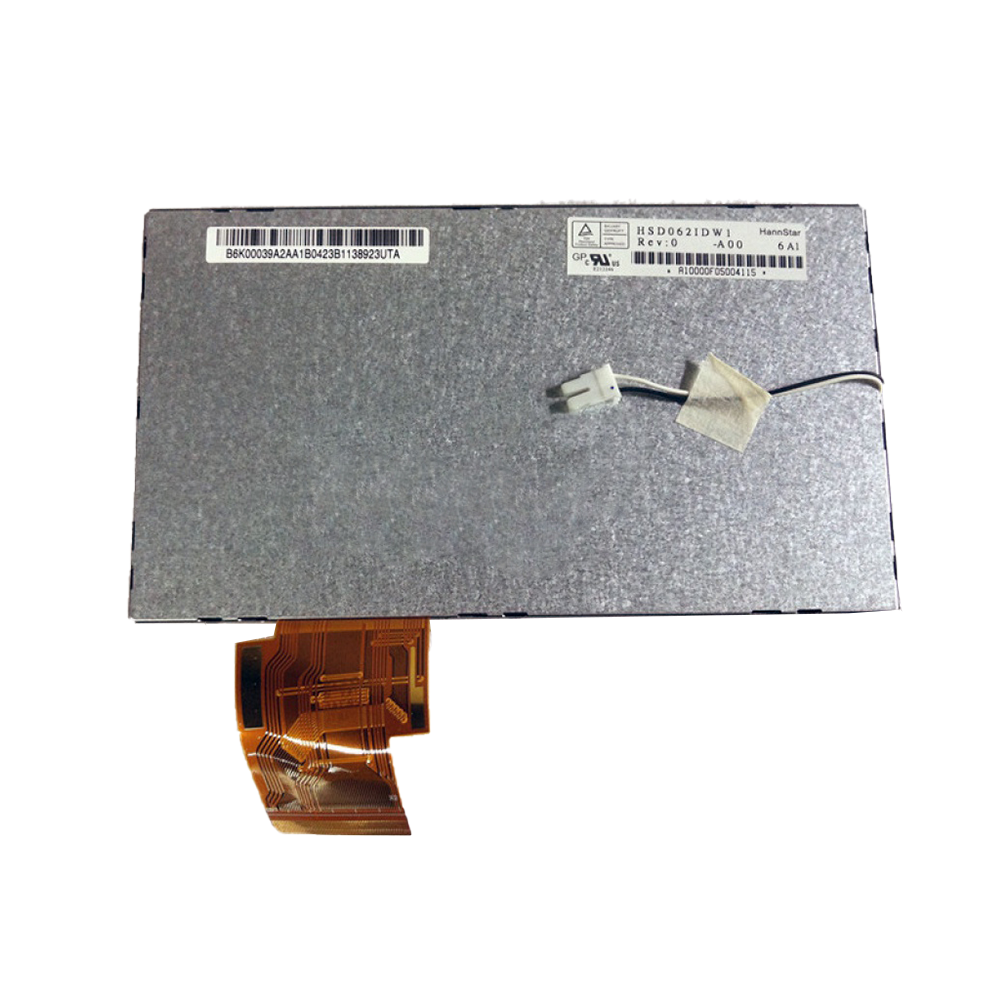

Brand: HannStar
Model Number: HSD062IDW1-A02
Resolution: 800 x 480
View angel: 75/75/70/70
Interface: RGB
Brightness: 400nits
Application: Automotive, Industrial, Security, Medical

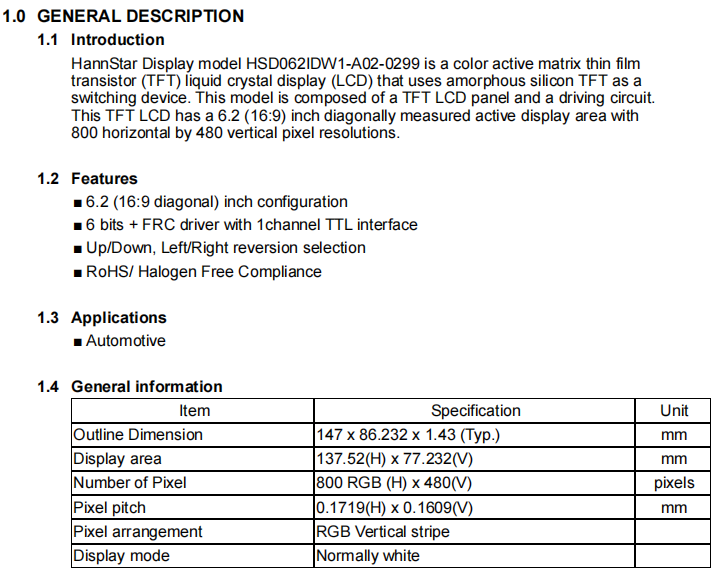

Overview
The HSD062IDW1-A02 is a high-performance 6.2-inch TFT LCD display module developed by HannStar Display Corporation, specifically designed for automotive display applications. Featuring a wide 16:9 aspect ratio and a resolution of 800×480 pixels, this module offers high brightness, high contrast, and wide viewing angles, making it suitable for in-car infotainment systems, instrument clusters, and other automotive electronic devices.
Key Features
-
6.2-inch wide-screen display with a 16:9 aspect ratio for an enhanced viewing experience
-
800×480 pixel resolution for sharp and detailed imagery
-
High brightness (typical 400 cd/m²) for readability in bright automotive environments
-
Wide viewing angles (horizontal ±75°, vertical ±70°) for clear visibility from multiple positions
-
Supports 6-bit + FRC (Frame Rate Control) for richer color reproduction
-
RoHS/Halogen-Free compliant, suitable for automotive and industrial display applications
-
Integrated driver circuitry with a simplified interface for easy integration
Applications
-
Automotive center console displays
-
Vehicle instrument cluster systems
-
In-car entertainment and infotainment systems
-
Industrial control panels
-
Portable display devices
Technical Highlights
-
High reliability: Operates in a wide temperature range (-20°C to 70°C) and passes multiple environmental and vibration tests
-
Low power design: Typical operating current of only 12.37mA
-
Flexible control: Supports up/down and left/right display reversal, adjustable scanning direction
-
Built-in protection: Includes ESD protection and controlled power sequencing for enhanced system stability
Why Choose HSD062IDW1?
If you are looking for a high-brightness, highly reliable TFT display module designed for automotive environments, the HSD062IDW1-A02 is an ideal choice. Its wide viewing angles, high contrast ratio, and low power consumption make it particularly suitable for automotive and industrial applications that demand high display quality and durability.
