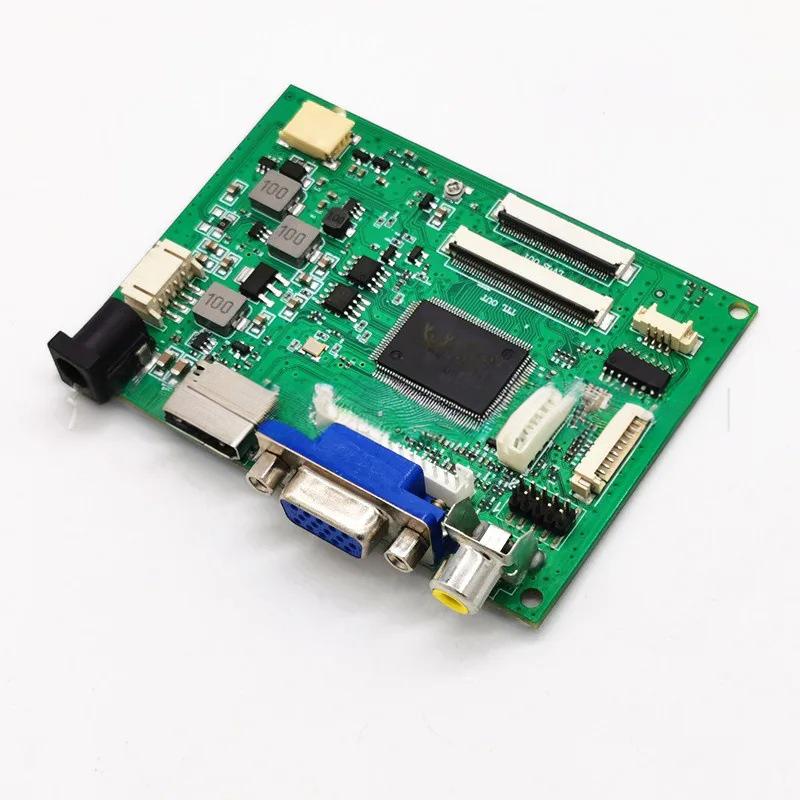

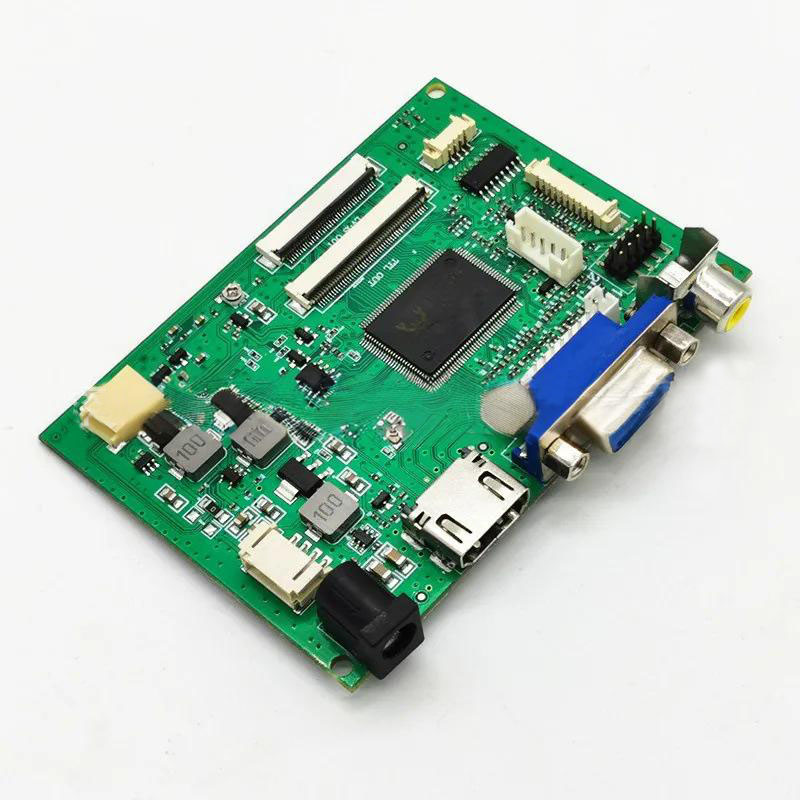

Part number: PCB800809
Resolution: Min 480×272~Max 1920×1200, FHD LCD
LCD Size: 6.5inch to 10.1inch
Driver IC: SIXTHHD-HD1
Power Supply: DC 9-12V (Display Voltage 3.3V/5V/12V)

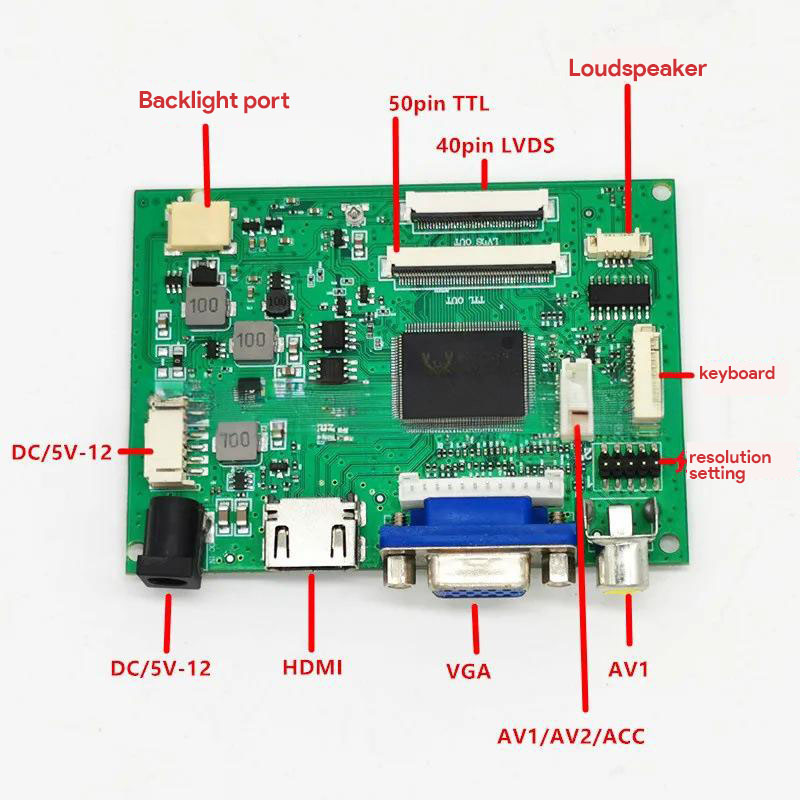

Interface for Display: LVDS/RGB(TTL)
Interface for input signal: HDMI /DC/VGA
Outline Dimension: 90X65mM
Suitable for TFT-LCD Model: 6.5inch, 7inch, 8inch, 9inch ,10.1inch
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
AT070TN94 etc regular RGB 50PIN interface LCD module
With PCB800100 can be support 4.3inch , 5inch , 6inch , 7inch , 40PIN regard interface，Pin definition can be refer to Innolux AT043TN24V,1
EJ070NA01-1024X600
EJ080NA04B-1024X768
EJ101NA-02C-1280X800
EJ101NA-01G-1280X800
ZJ080NA-01
