Modern industrial systems rely on visual data in real-time to help streamline the processes of automation in a safe and efficient manner. From production facilities to corporate command centers, visual displays have become the fundamental interface between the operator and the increasingly complex automated systems.
The 32-inch LCD panel strikes the optimal balance between viewing and installation. When compared with the smaller (and more expensive) industrial HMIs, it is simple to integrate for the space it provides for information pertaining to the process. Based on the TFT-LCD technology, industrial automation systems, and machine and control room interfaces, 32-inch LCDs are predominant in factory automation.
In a production environment, front-line operators need real-time access to process control and machine status information, as well as system alerts. The real estate provided by the 32-inch LCD panel allows multiple information sources to be displayed at once. This serves to enhance operational efficiency by eliminating unnecessary screen transitions.
A big industrial display gives operators the ability to see production, machine, and energy data (and associated trends) on a single screen. For an automated production line, this is most valuable.

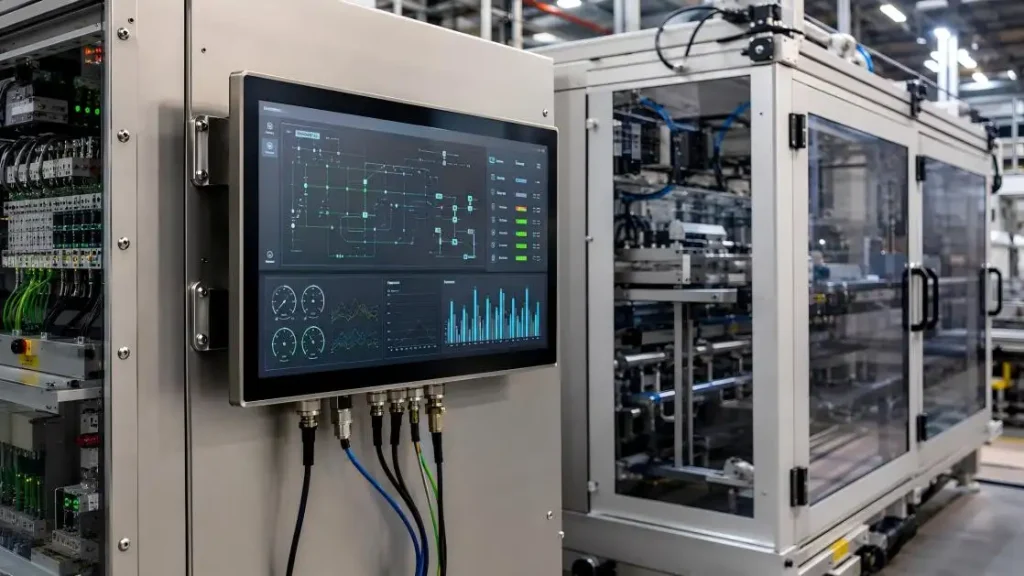

Most industrial 32-inch LCD panels are built to be integrated into control cabinets, equipment enclosures, and operator control stations. Some of the options that give design engineers flexibility to integrate the display into a variety of machine structures are panel mount brackets, VESA mounts, and custom brackets.
In human-machine interfaces, the industrial touch screen engages the user directly with the system. In such environments, resistive touch technology is favored for its ability to work with gloves, while projected capacitive (PCAP) touch technology is utilized for ease of multi-touch functionality.
Typical industrial displays support various common interfaces, including HDMI, DisplayPort, VGA, and RS232/RS485, which are determined by the given application. Such interfaces ease integration with PLCs, industrial personal computers (PCs), and automation controllers.

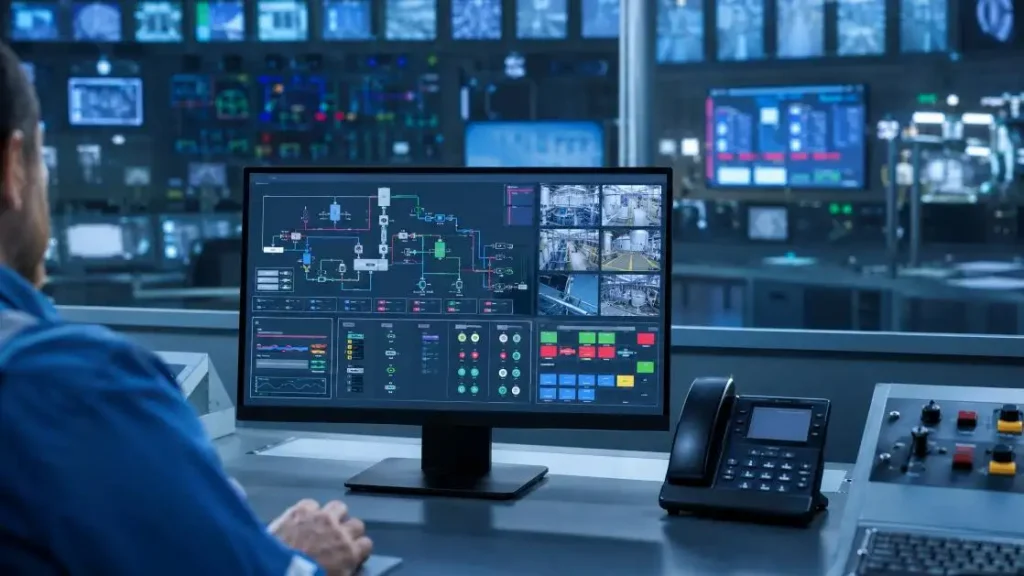

Displays utilized in the control rooms of the energy, transportation, utility, and manufacturing sectors need to support long periods of operation and constant monitoring. A 32 inch LCD panel is a suitable solution for operator workstations and for systems that employ multiple displays for monitoring.
With the large viewing area of a single 32 inch LCD panel, SCADA systems, alarms, equipment status, and surveillance information can be displayed. The reduced need for display changes helps operators to recognize and respond to abnormal situations.

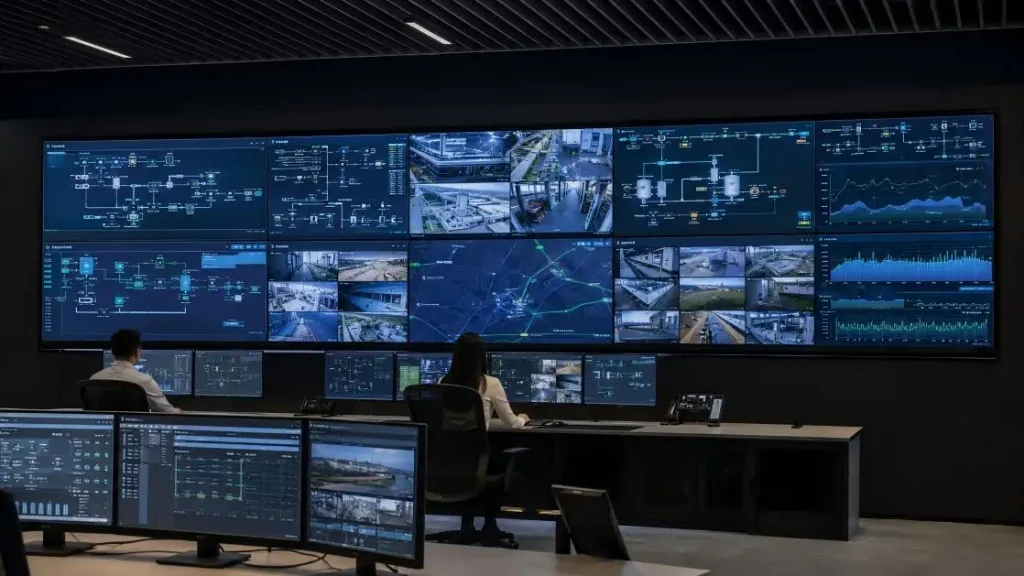

Large video wall displays for monitoring can be made by joining several 32 inch LCD panels. For this application, panel models with thin bezels are typically chosen to eliminate display gaps and be seamless to the observer.
Display quality can significantly impact fatigue and work efficiency. Industrial TFT-LCD panels help with fatigue when combined with features such as long continuous operation, wide viewing angles, stable brightness, and an anti-glare surface.
When considering options like small or large commercial display panels, 32 inch LCD panels meet the needs of most industrial environments best.
Measuring 32 inches, these panels have ample space for building large, complex graphics, process diagrams, and data dashboards, and do not require large or extensive installation space.
Industrial 32 inch TFT-LCD panels can display graphics in Full HD (1920 × 1080) resolution, ensuring clarity for text and diagrams, and for monitoring interface. Even higher resolutions are possible.
Displays using IPS technology or similar, provide wide viewing angles, allowing a large number of operators to view the display with very little distortion.
Industrial displays are built using LED backlights with long operational periods, and supports backlight lifetimes of 50,000 hours or more.
Industrial environments and applications set a higher standard or level of demand on display panels than in the commercial environments. Taking the following factors into considerations, can help.
Display brightness is generally determined by the installation environment. Lighting can vary from almost total darkness to bright ambient lighting. The latter would demand brightness in the range of 500 to 1,000 nits, while lighting control can allow a much lower brightness specification.
Dust and heat can also affect the operational performance of industrial TFT-LCD panels if there is a lack of temperature control.
Some situations may call for customized solutions such as:
•Unique mounting specifications
•Custom positional connectors
•Alternative cable configurations
•Varied levels of brightness
•Embedded touchscreens
Partnering with a qualified TFT-LCD manufacturer lets engineers refine displays to suit the specifications of the equipment they're designing.
| Specification | Factory Automation | Control Room |
| Brightness | Generally 400–700 nits based on surrounding conditions | Normally 300–500 nits in a controlled environment |
| Touch Function | Resistive or PCAP for interface with machines | PCAP may be included for operator consoles |
| Viewing Angle | Various operator positions demand a wide viewing angle | Very wide for numerous observers |
| Operation | Designed for 24/7 use in an industrial setting | Designed for continuous critical operations |
| Installation | Panel mount, VESA, or custom brackets | Console mount or integration in a video wall |
| Interfaces | HDMI, VGA, RS232/RS485 | HDMI, DisplayPort, and video processing units |
An industrial display's performance is influenced by the underlying TFT-LCD panel, the capability and willingness to manufacture what is needed, and a dependable supply.
FaceLCD is a proven leader in the industrial display solutions market with over 17 years of experience. They offer tailored 32 inch LCD panel solutions with a variety of interfaces, brightness, mechanical, and touch design options.
This modularity lets OEMs and systems designers seamlessly integrate their offerings into manufacturing, automation, and control systems, with the added benefit of maintaining the same quality over different product generations.
A 32 inch LCD panel presents an ideal mix of optimal screen size for control and display applications, combined with robustness for industrial applications and good options for integration for modern automation and monitoring systems. The right TFT-LCD solutions along a factory production line or in a control room helps to enhance visibility, improve operational effectiveness, and also help ensure the long-term reliability of the system.
Based on a careful assessment of the requirements for your application with respect to the environment in which the system operates and the requirements for integration, FaceLCD is able to offer dedicated, reliable 32 inch LCD panel solutions for your project. With a solid 17 year background in the manufacturing of TFT-LCDs, FaceLCD is able to offer professional service for the design and engineering of TFT-LCDs, flexible options for industrial automation, and a dependable supply for control room applications.
Q1: What applications are served by a 32 Inch LCD Panel?
Typically, a 32 Inch LCD Panel is applicable in industrial automation, HMI systems, control rooms, and monitoring applications.
Q2: What advantages does a 32 Inch LCD Panel offer for industrial applications?
This size offers the advantage of a large viewing area while retaining flexible options for installation and integration.
Q3: What options for touch capability does a 32 Inch LCD Panel offer?
It can be enabled for touch through the integration of resistive or PCAP touch solutions, depending on the application.
Q4: What is the standard resolution for a 32 Inch LCD Panel?
Most models offer Full HD 1920×1080 resolution for industrial applications; other resolution options can be offered.
Q5: Can a 32 Inch LCD Panel run 24/7?
Yes, models designed for industrial applications can run continuously with backlighting and good performance.
