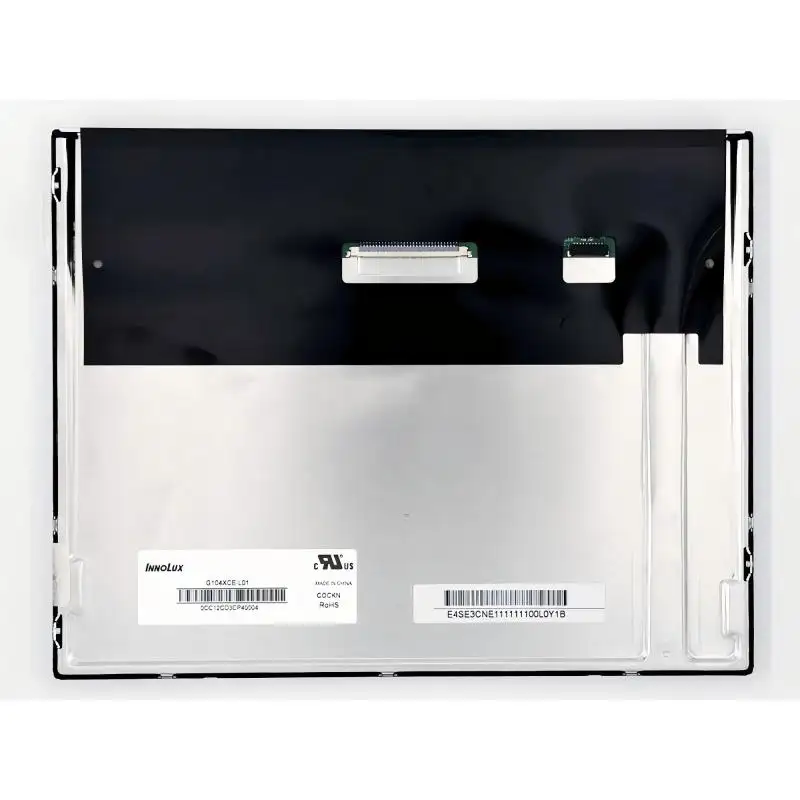

G104XCE-L01 LCD Module: XGA Vertical Space for Data-Heavy HMIs

The G104XCE-L01 LCD Module remains a practical display choice for industrial and medical human-machine interfaces that need to present dense information clearly. With a 10.4-inch 4:3 format and 1024×768 XGA resolution, this Innolux TFT LCD gives engineers more vertical workspace than many wide-format panels, making it well suited for alarm lists, parameter tables, waveform areas, trend charts, and multi-level control menus.

For equipment designers, the value of the G104XCE-L01 LCD Module is not only its resolution. It combines 500 cd/m² brightness, a 1000:1 contrast ratio, wide viewing angles, LVDS signal input, and an extended -30°C to +85°C operating temperature range. These features make the module a dependable option for machine-tool HMIs, compact medical terminals, building automation panels, test instruments, and embedded control systems.

Why XGA Vertical Space Still Matters

Many modern displays use wide aspect ratios, which can be useful for dashboards or video-oriented interfaces. However, data-heavy HMIs often depend more on vertical space than width. Compared with a 1024×600 WSVGA layout, the 1024×768 resolution of the G104XCE-L01 LCD Module provides 168 additional vertical pixels, or about 28% more vertical workspace.

That extra height can make a meaningful difference in real operation. Engineers benefit from increased visibility of PLC registers, lengthened alarm histories, less scrolling, and the ability to layout buttons and bars in a more organized format. Operators constrained by time benefit from a more organized layout of less page switching and improved readability on a single page.

This is the reason the G104XCE-L01 LCD Module is important for equipment where the size of the enclosure is fixed, but there is more information to display.

G104XCE-L01 LCD Module Specifications

Layouts Benefits for Data Intensive Interfaces

The design of the G104XCE-L01 LCD Module lends itself to displays for HMIs  with data elements in a compact display. A 4:3 XGA screen helps designers create layouts with a clear hierarchy to place status information at the top, operating data in the middle, and controls or navigation at the bottom.

Some common interface benefits include:

•Longer parameter lists displayed on a single screen help technicians review information without the need to traverse multiple sub-pages.

•Trend graphs and waveforms can occupy more vertical plotting space. This is useful for medical monitors, vibration analysis tools, power meters, and diagnostic equipment.

•There will be greater flexibility to reuse existing 4:3 HMI templates. Many older industrial control systems interfaces were designed for XGA resolution, so the G104XCE-L01 LCD Module will allow teams to modernize control systems while retaining the same UI.

•Alarm sections and status bars can be preserved. This won't obstruct the main functionality work area. This is useful for systems where operators need access to control alerts, feedback, and the current states of the processes.

•The additional area can also be used for interfaces that support multiple languages. Longer labels in languages such as German, French, or Spanish can be placed beside controls more comfortably, reducing the need for smaller fonts or truncated text.

For related reading, an internal article on XGA display advantages in industrial UI design can be linked from this section.

Integration Support for Industrial Display Projects

FaceLCD supports the G104XCE-L01 LCD Module as more than a standard display component. During product development, engineering teams often need to confirm signal compatibility, FPC cable routing, backlight power requirements, scan direction, mechanical fit, and touch panel options before moving from prototype to production.

Conducting an early-stage technical review minimizes the risk of integration. For instance, early checks of the LVDS timing along with the position of the connectors, the mounting structure, and the driving conditions of the backlight, will reduce the chances of having to carry out a redesign at later stages of the project. For customers developing industrial HMIs, medical devices, control terminals, or monitoring systems, this support can make the G104XCE-L01 LCD Module easier to integrate into a stable display subsystem.

For drawings, timing details, sample availability, and current supply information, please visit FaceLCD's Innolux G104XCE-L01 product page.

A Reliable XGA Platform for Clear Data Presentation

The G104XCE-L01 LCD Module offers a strong balance of vertical display space, industrial-grade operating temperature, wide viewing performance, and LVDS connectivity. Its 10.4-inch 4:3 format is especially suitable for interfaces built around structured data rather than wide visual content.

For developers who need a readable, durable, and integration-friendly display for data-heavy HMIs, the G104XCE-L01 LCD Module provides a proven foundation for clear operator interaction and long-term equipment design.

FAQs

Q1: What is the resolution of G104XCE-L01 LCD Module?

G104XCE-L01 LCD Module has a resolution of 1024x768 XGA.

Q2: What applications use G104XCE-L01 LCD Module?

Applications of the G104XCE-L01 LCD module span across industrial HMI, medical devices, automation, and embedded displays.

Q3: Does G104XCE-L01 LCD Module support LVDS input?

The G104XCE-L01 module incorporates an LVDS input for an easy and robust integration to an embedded system.

Q4: What is the range of operating temperature of G104XCE-L01 LCD Module?

The operating temperature of the G104XCE-L01 LCD Module is in the range of -30°C to +85°C.

Q5: How bright is the G104XCE-L01 LCD Module?

The brightness of the G104XCE-L01 LCD Module is 500 cd/m².
