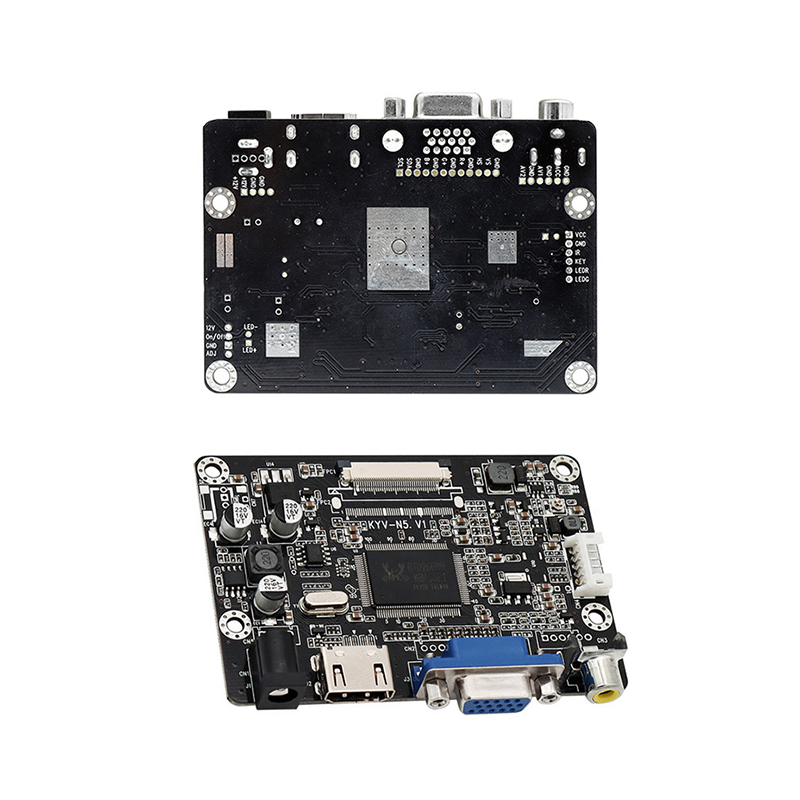

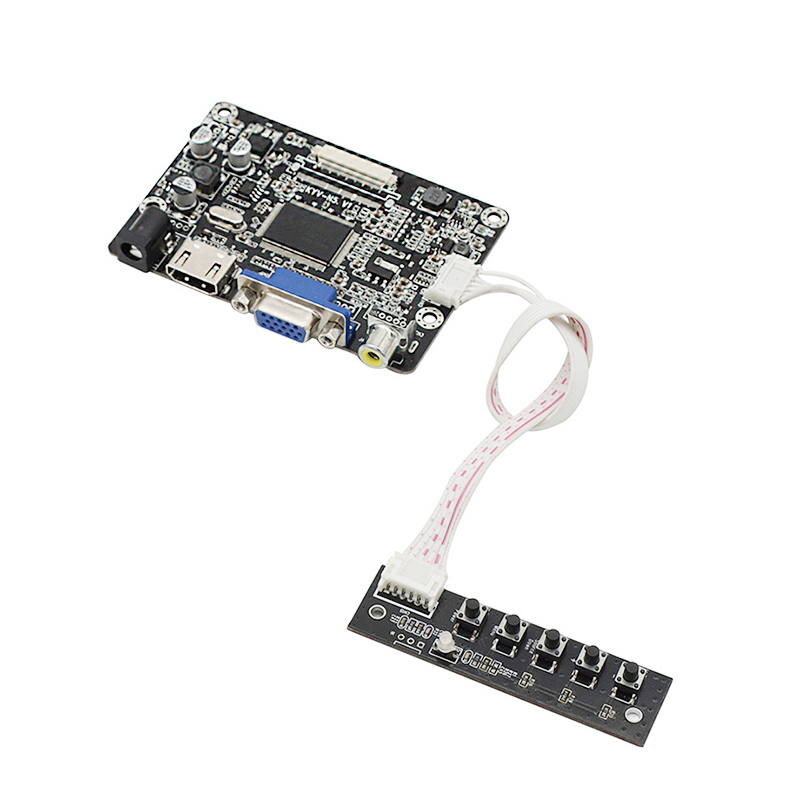

Part number: KYV-N5 V1
Resolution: Min 640X480~Max 1280X800
LCD Size: 3.5” ～10.2” (3.5inch, 4.3inch, 5.0inch, 5.6inch, 7.0inch, 8.0inch, 8.4inch, 10.2inch, etc)
Driver IC: RTD2660H
Power Supply: DC 12V (Display Voltage 3.3V/5V/12V)

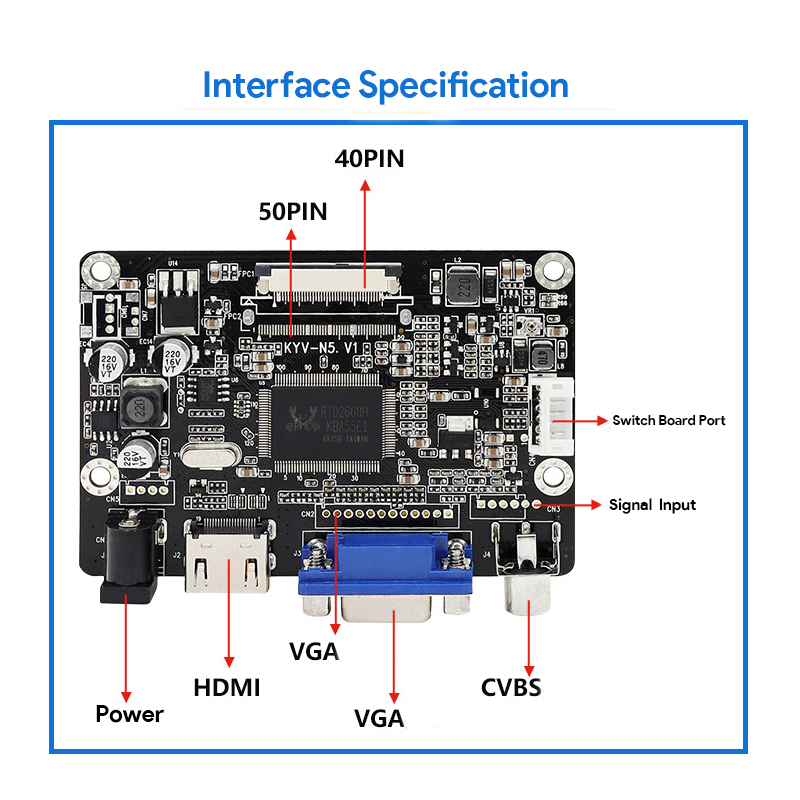

Interface for Display: LVDS/RGB
Interface for input signal: HDMI /VGA/DC

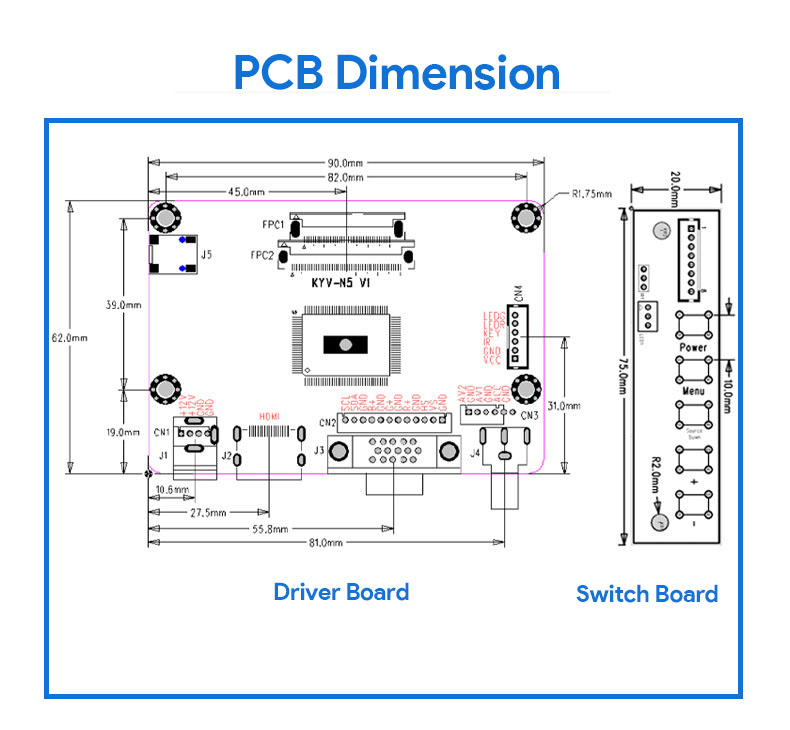

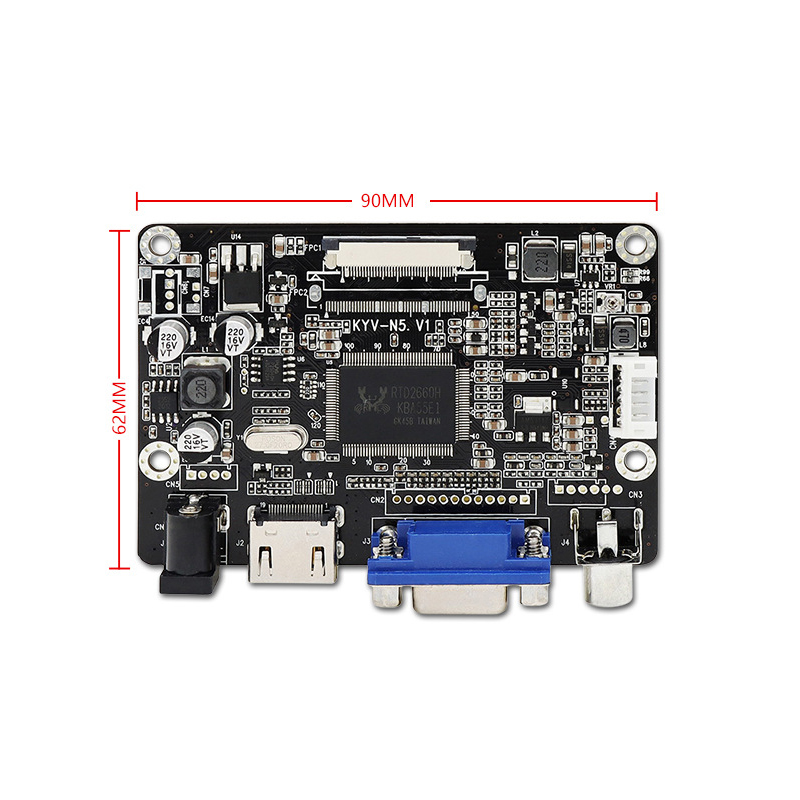

Outline Dimension: 90X62X15mm
Operation Temperature: -10 ～60 ℃
Storage Temperature: -10 ～60 ℃
Suitable for TFT-LCD Model:
FPC1 40PIN: support EJ080NA-04C, EJ070NA-01J, EJ101A-01G and similar interface LCD module.
FPC2 50PIN: support AT080TN52, EJ080NA-05A/B, AT070TN92, AT070TN94 and similar interface LCD module.
