TN TFT LCD Display: Reliable Display Solution for Modern Devices

• Display technology is constantly changing, yet one display solution has been a reliable option in industrial equipment, medical devices, consumer electronics, and embedded systems: the TN TFT LCD display. This display technology is known to have a high response rate, predictable performance, and can be used in a wide range of products at a low cost.
• Be it an industrial control panel, a smart home device, or a handheld terminal, a TN TFT LCD screen is a great compromise between performance and cost. It is one of the most viable display options in the market due to its mature manufacturing process, wide availability, and compatibility with various interfaces.

Knowledge About TN TFT LCD Display Technology

A TN TFT LCD display is a display that uses a combination of Thin Film Transistor (TFT) active matrix control and Twisted Nematic liquid crystal technology. The outcome is a screen that can provide clear images, high refresh rates, and stable operation.

A Thin Film Transistor LCD, in contrast to passive matrix screens, employs separate transistors to drive each pixel. This dynamic LCD design enhances the quality of images, the speed of response, and color display.

The main features of a TFT TN display are:

•          Fast response time

•          Low manufacturing cost

•          Energy-efficient operation

•          Lightweight construction

•          High production scalability

•          Very good compatibility with embedded systems.

Due to these benefits, TN technology continues to be very popular in industrial and commercial display applications.

The Reason Why TN TFT LCD Displays are Still Popular

Many engineers compare TN vs IPS display technologies when selecting a screen. Although IPS panels have a broader viewing range, TN technology has a number of advantages that render it suitable for most of the projects.

Fast Response Performance

One of the biggest TN display advantages is response speed. A quick-response TFT display minimizes motion blur and enhances screen refresh in dynamic situations. This renders TN panels appropriate in:

•          Industrial control display systems.

•          Car TFT display applications.

•          Instrumentation display equipment

•          Display devices of POS terminals.

•          HMI display panel interfaces.

Every millisecond counts when operators require real-time information.

Cost-Effective Manufacturing

A low-priced TFT display can save a lot of money on the total product cost without affecting the necessary performance. TN technology provides:

•          Lower procurement costs

•          Stable supply chains

•          Long-term availability

•          Easier product replacement cycles

This is the reason why a TN LCD module is adopted by many companies in the development of commercial equipment.

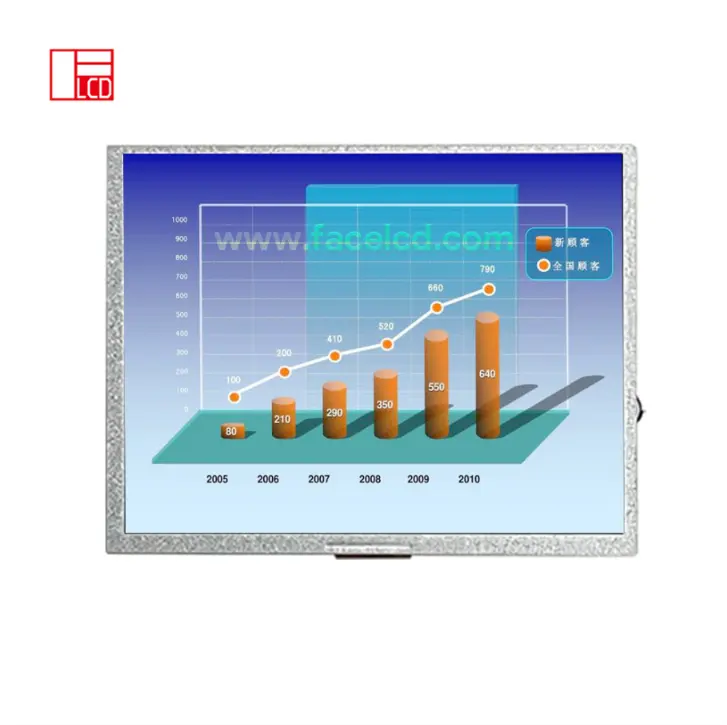

Spotlight on FaceLCD's 10.4-Inch TN TFT LCD Display

A good example is the 10.4-inch TN TFT LCD offered by FaceLCD. The panel is an industrial-grade with 800 x 600 SVGA resolution, LVDS interface, 4:3 aspect ratio, and 350 cd/m 2 brightness. It is intended to be used in industrial equipment, medical equipment, security systems, smart home products, and embedded applications. The display also has a wide operating temperature of -20C to 70C thus suitable for harsh environments.

Key specifications include:

•          10.4-inch TFT LCD display module

•          800 × 600 resolution

•          LVDS TFT display interface

•          RGB stripe pixel format.

•          16.7 million colors

•          350 cd/m² brightness

•          Large temperature LCD module design.

•          Industrial-grade reliability

In projects that involve replacement displays that are stable or integration of embedded systems, this TN LCD module offers an effective and cost-effective solution.

Uses of TN TFT LCD Displays in Industries

TN technology is versatile and can be applied to a variety of applications.

Industrial Automation

An automation system has a rugged industrial TFT LCD as its visual interface.

Common uses include:

• PLC systems
• Factory monitoring equipment
• CNC machines
• Human-machine interfaces

Medical Equipment

Medical equipment needs reliable display systems that have an extended life. Applications include:

• Patient monitoring systems
• Diagnostic instruments
• Laboratory equipment

Portable medical device display systems.

Consumer Electronics

A small color TFT LCD screen is typically used in:

• Smart home display screens.
• LCD products of handheld devices.
• Consumer electronics displays
• IoT display modules

Automotive Systems

Automotive manufacturers often integrate automotive TFT display solutions into:

• Dashboard displays
• Navigation systems
• Monitoring equipment
• Control interfaces

Selecting the Right TFT LCD Display Module

The choice of the best LCD module is based on a number of technical aspects.

Consider the following:

Interface Compatibility

The TFT display interface should be compatible with your hardware platform. Available interfaces include:

•          SPI TFT display

•          RGB TFT display

•          LVDS TFT display

•          MCU interface LCD

•          MIPI TFT LCD

Brightness Requirements

Indoor applications can work well with 250-350 nits. Outdoor environments often require:

•          High brightness LCD

•          TFT display that is readable in the sun.

•          Improved optical bonding solutions.

Environmental Conditions

Industrial deployments often need:

•          Construction of durable LCD modules.

•          Wide temperature LCD module support

•          Extended LCD performance.

TN TFT Vs IPS TFT: Which is Better?

The debate between TN TFT and IPS TFT is still going on in the display industry. TN technology typically offers:

•          Faster response speed

•          Lower cost

•          Reduced power consumption

•          Easier large-scale deployment

Generally, IPS technology offers:

•          Wider viewing angles

•          Better color consistency

•          Improved image quality from multiple directions

A TN display panel can still be a good choice when it comes to equipment that needs to be cost-effective, fast, and reliable.

The Future of TN Display Technology

• Despite the continued emergence of newer display technologies, TN display technology is still very relevant. Modern TN panels have been enhanced greatly by the development of backlighting, optical enhancement, and driver electronics.
• The current OEM TFT LCD systems have enhanced brightness, durability, and lifespan compared with the earlier models. In embedded systems, industrial devices, and cost-sensitive applications, TN technology still offers outstanding value.

Conclusion

Technology fads are here and there, but in real-world engineering choices, reliability, performance, and cost are always considered. The TN TFT LCD display is well designed and provides all three. In industrial automation and medical equipment, TN panels are still used to power products that people use daily (IoT devices and smart home systems).

Are you willing to upgrade your display project? Contact FaceLCD to discuss custom TN LCD modules, industrial TFT LCDs, and custom TFT display solutions designed to meet your specific needs.
