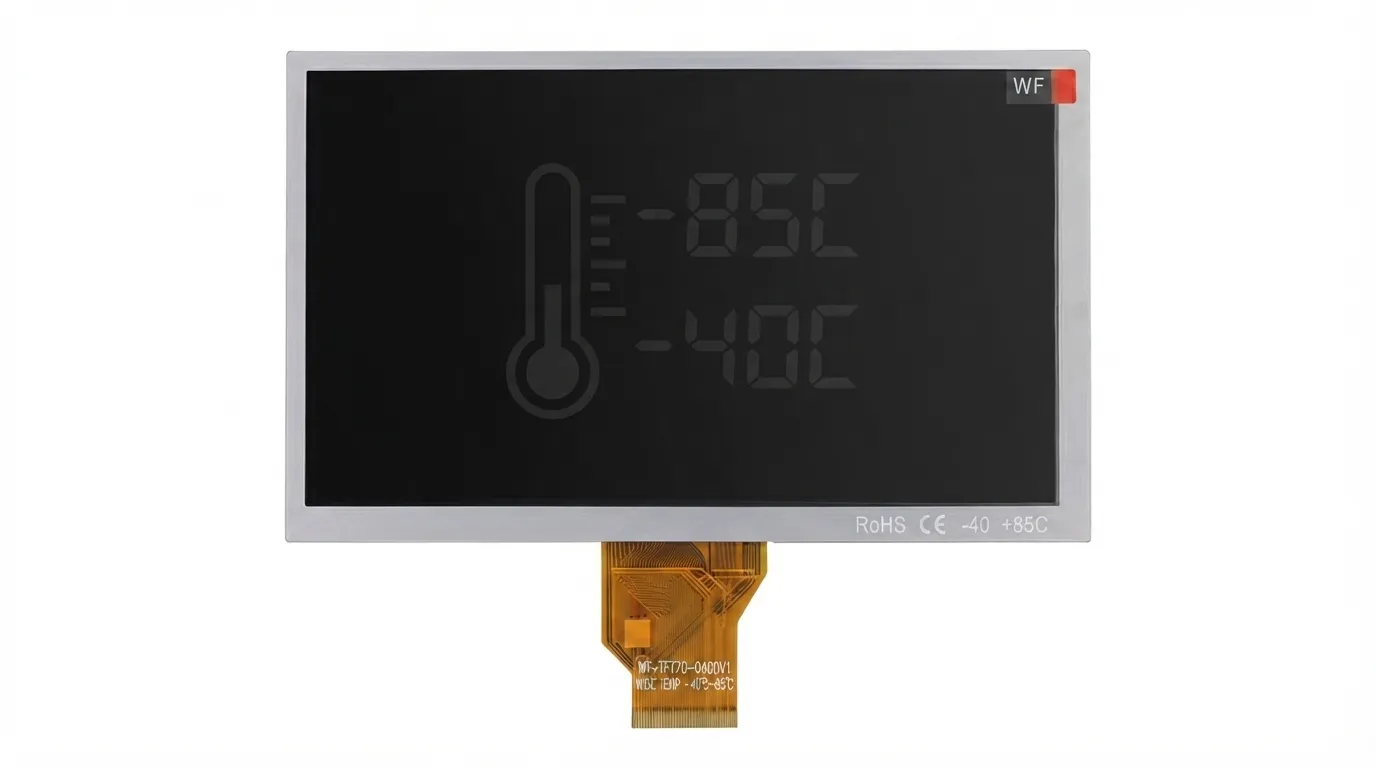

Wide Temperature LCD Module: Displays for Extreme Environments

Wide Temperature LCD Module: Display Solution for Extreme Industrial Environments

Display reliability is important when electronic equipment is used in freezing winters, scorching summers, or industrial environments where high demands are placed on the equipment. A typical LCD can perform poorly under such conditions, whereas a Wide Temperature LCD Module is designed specifically to operate under extreme temperatures.

• These advanced display systems have been used in factory automation systems and medical devices, as well as transportation displays and EV charging stations, to enable businesses to have reliable operation in harsh environments. They are more popular in modern embedded systems due to their durability, visibility, and long service life.
• The wide-temperature display solutions at FaceLCD are developed to fulfill the needs of industrial, automotive, and outdoor applications where reliability is paramount.

The Importance of Wide Temperature LCD Modules

LCD performance is directly related to temperature. Liquid crystals may be slow to respond in low temperatures, resulting in slow image transitions. Display contrast and lifespan can be affected negatively in high temperatures.

• The extended temperature LCD module is made using special materials, optimized backlight systems, and strong electronic components that allow it to work reliably over a wider temperature range.
• Most industrial-grade displays work within the range of -20C to +70C, and some more advanced models can work with a range of -30C to +80C or even -40C to +85C, thus can be used in extreme industrial environments.

Main Characteristics of a Wide Temperature TFT LCD Module

A new wide temperature TFT LCD module is a combination of durability and high visual performance. The main characteristics are usually:

•          Large operating temperature display.

•          LCD module technology with high brightness.

•          LCD that can be read in the sun.

•          Long-life WLED backlighting

•          IPS TFT LCD module viewing technology

•          Ruggedized display module construction

•          Touch screen LCD compatibility.

•          Anti-glare surface treatment

•          Stable color TFT display performance

•          LCD certification to industrial grade.

These features enable the display to be visible and responsive to the environmental conditions.

Technology of the LCD Modules in Industry

An industrial LCD module of high quality is based on the latest TFT technology to provide clear images and high-quality performance. The majority of industrial displays include:

•          Active-matrix TFT architecture

•          RGB or LVDS interfaces.

•          Wide viewing angles

•          Enhanced thermal management

•          Reinforced display structures

•          Embedded display technology with low power.

As an example, the 8-inch industrial display solutions of FaceLCD have resolutions of 800x480 to 1024x600, brightness of up to 450 nits, RGB or LVDS interfaces, and operating temperatures of up to 185 °C (365 °F).

Applications in the Real World of Wide Temperature LCD Displays

Wide temperature LCD has no single industry. It is useful in many fields due to its versatility.

Automotive Systems

Contemporary cars are extremely dependent on digital interfaces. A car LCD unit is available in:

•          Digital instrument clusters

•          Fleet management systems

•          Vehicle-mounted display systems

•          Navigation units

•          Commercial transportation dashboards

A car-grade wide temperature LCD should be able to work in winter mornings and summer heat waves.

Industrial Automation

Industrial plants require reliable displays.

Common uses include:

•          Display equipment in factory automation.

•          Interfaces to machine control displays.

•          Industrial control LCD screen applications

These systems are usually 24/7, and as such, reliability is a necessity.

Medical Equipment

Healthcare settings need accuracy and clarity. A medical device LCD module supports:

•          Patient monitoring systems

•          Diagnostic equipment

•          Portable medical devices

•          Laboratory instruments

Medical uses of visual information require accurate visual information.

Importance of High Brightness and Visibility

Numerous industrial and outdoor uses need displays that can be read in harsh lighting environments. High brightness, wide temperature TFT LCD module is generally offered at a brightness of 450-1000 nits, depending on the project needs.

Benefits include:

•          Better outdoor readability

•          Reduced reflection issues

•          Improved user experience

•          Improved safety in the workplace.

These displays, together with anti-glare finishes and IPS technology, provide uniform image quality at various viewing angles.

Selecting the Most Suitable Wide Temperature LCD Module

When choosing the appropriate display, it cannot be done by simply comparing the size of the screen. Take into account the following factors:

Temperature Range

Confirm that the display can meet your environmental needs. In high-performance applications, seek an LCD module that can work between -40 o C and +85 o C.

Interface Compatibility

Common interfaces include:

•          RGB

•          LVDS

•          MIPI

•          SPI

Make sure it is compatible with your embedded system and controller board.

Display Technology

A typical IPS TFT LCD module provides:

•          Better viewing angles

•          Superior color accuracy

•          Improved visual consistency

Brightness Requirements

High-brightness displays are useful in outdoor applications, whereas moderate levels of luminance can be used in indoor systems.

Touch Functionality

A lot of projects are now in need of an industrial touch screen display or a wide temperature LCD module with capacitive touch features.

Bespoke Industrial LCD Solutions to Special Projects

Not all applications are able to utilize an off-the-shelf display. A variety of manufacturers now provide:

•          Development of a custom wide temperature LCD.

•          Touch integration

•          Cover glass customization

•          Interface modifications

•          Mechanical redesign

•          Optical bonding

Collaborating with a reliable wide temperature LCD module manufacturer can enable businesses to maximize performance, minimize integration issues, and expedite product development.

Beyond Temperature: Creating Displays That Never Back Down

• The interface of people and machines is often the display. Reliability is more important than ever when circumstances are extreme.
• A temperature LCD Module offers durability, visibility, and performance needed to ensure smooth operation of critical systems. Installed in industrial machinery, transportation systems, medical devices, or outdoor kiosks, these displays are designed to work in areas where normal displays fail.
• The high quality and ruggedness of a display can be a great investment today and greatly enhance the reliability and satisfaction of the system in the long run.

Conclusion

Need a reliable supplier of a wide temperature LCD module that can comprehend industrial needs? FaceLCD provides custom industrial LCDs, industrial-grade display technology, and high-performance TFT LCD systems for your application. You may require an industrial TFT LCD module with a broad operating temperature range or a highly engineered display in a rugged environment. We offer reliable solutions with professional support.
